EVGA Announces SuperNova 1000 P2 PSU

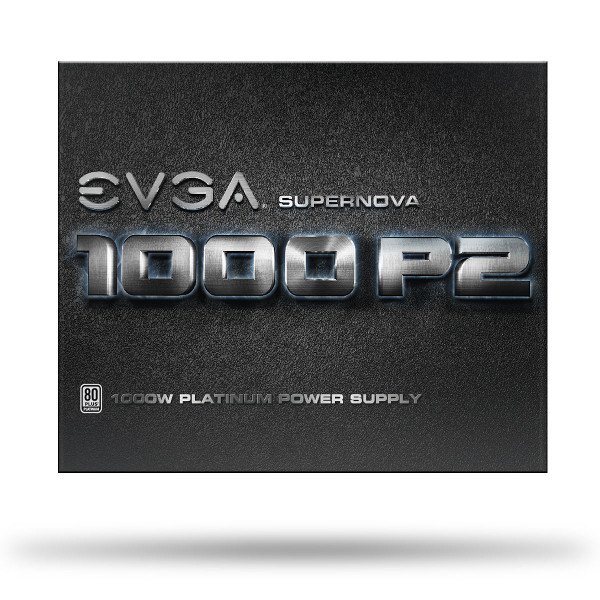

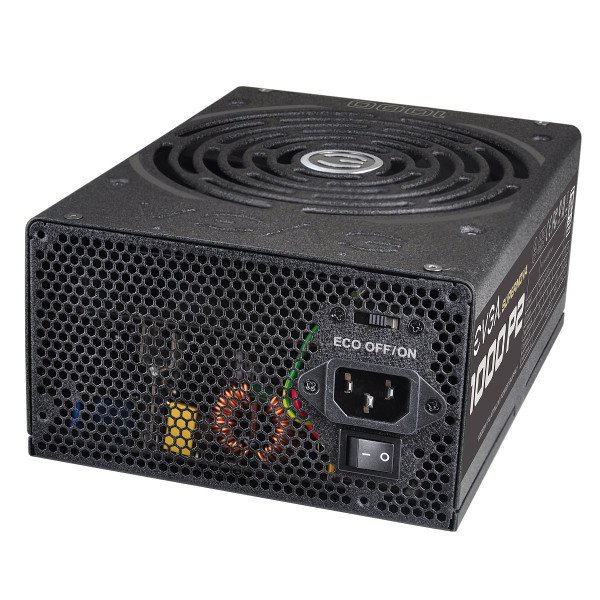

EVGA SuperNova 1000 P2 PSU

EVGA has announced an addition to their power supplies with the SuperNova 1000 P2 PSU that is rated 80PLUS platinum efficiency max output of 1000W at 50C. The new power supply will feature fully modular cables, 92% efficiency for normal loads, EVGA ECO thermal fan system, and a 10 year warranty. The SuperNova 1000 P2 ECO thermal control fan was designed to provide zero fan noise at low loads, less power consumption, reduced energy cost, minimal heat dissipation, and longer life of the power supply. Currently you can purchase this PSU for $198.99 from Amazon or $219.99 from Newegg.com.

EVGA SuperNova 1000 P2 PSU Features and Specifications

Features:

  • 80 PLUS Platinum high efficiency power supply certified – 50% load (92% Efficiency)
  • Superior vertical double layer main transformer
  • Dual Thermal Control System provides custom Fan RPM modes
  • ECO Intelligent Thermal Control Fan system (Zero Fan Noise < 45°C)
  • Japanese Nippon Chemi-Con solid state capacitors improves long-term reliability
  • High Amperage Multi-Rail Design for maximum power and efficiency
  • Over Power/Under Power/Over Voltage/Short Circuit protections built in
  • Fully modular cable design (Improve airflow/cable management)

Specifications:

AC Input 100-240 VAC~, 15A, 50-60 Hz
DC Output +5V +3.3V +12V -12V +5Vsb
MAX Output 20A 20A 83.3A 0.5A 2.5A
Combined 100W 999.6W 6W 12.5W
Output Power 1000W @ +50°C

Cable Lengths

ATX CABLE 1x 600mm (m)
EPS CABLE 2x 750mm (m)
PCIE CABLE 2x 750mm, 900mm (m) 4x 750mm (m)
SATA CABLE 2x 550mm, 650mm, 750mm (m) 2x 550mm, 650mm (m)
FOUR-PIN PERIPHERAL CABLE 1x 550mm, 650mm 750mm (m) 1x 550mm,650mm (m) (f)
FLOPPY CABLE 1x 100mm
AC POWER 1x 1500mm (m)
