Thermaltake Core V71 Full Tower Case Announced

Thermaltake Logo 300x225

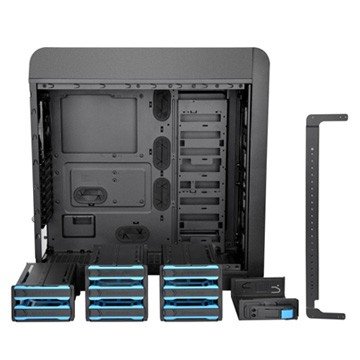

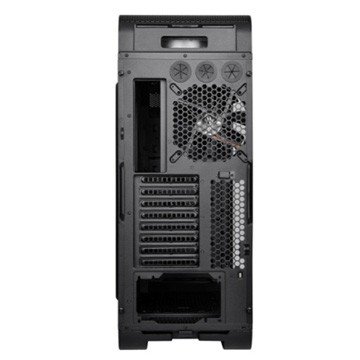

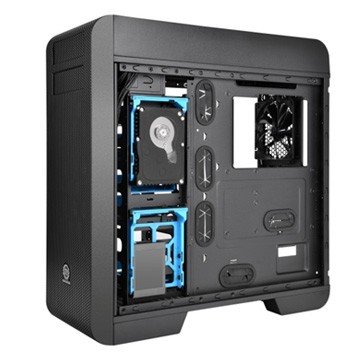

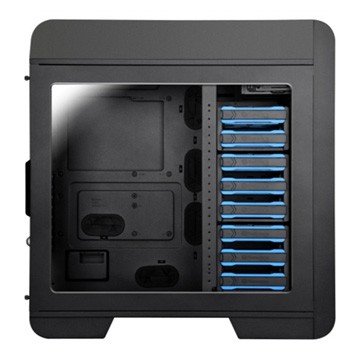

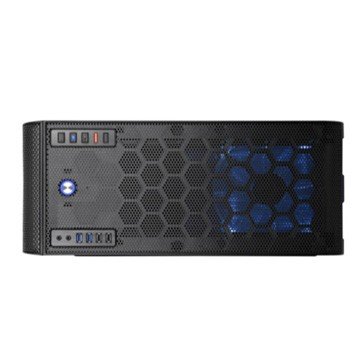

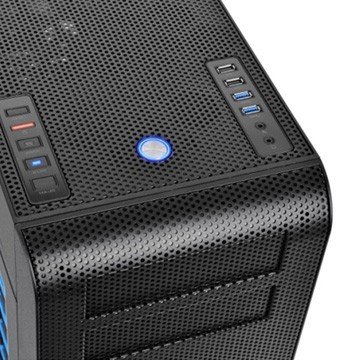

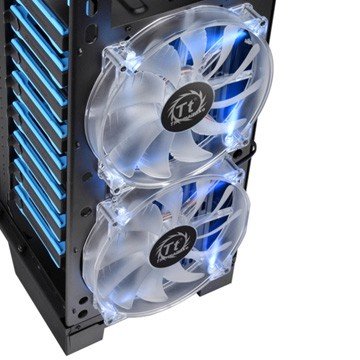

The Thermaltake Core V71 Full tower case has been announced with information and specs released. The Core V71 is a fully modular design as you will see from the pictures below you will be able to fit four massive 200 mm fans in this case. Two 200 mm fans in the front for intake and two on top for exhaust. Thermaltake also designed this case to take full advantage of running either custom loops or all in one liquid coolers such as their Water 3.0 extreme systems. Thermaltake said they wanted to make the Core V71 for enthusiast with subtle curves, bold textures, and clean lines to appeal to the consumer. As you will see from the pictures below also is that all the drive bays are fully modular and Thermaltake takes this case one step further than other manufacturers by letting you mount a full size 3.5″ HDD in the rear where most only has space to fit a 2.5″ SSD. Everything on the Core V71 is tool free design and Thermaltake believes this case to have supreme air cooling which by the massive air flow this case gets with its pre-installed fans I would not doubt.

Thermaltake Core V71 Full Tower Case

Thermaltake Core V71 Full Tower Case



 Thermaltake Core V71 Full Tower Case Specs

Model Core V71
P/N CA-1B6-00F1WN-00
Case Type Full Tower
Dimension (H x W x D) 583 x 230 x 560 mm
(23 x 9.1 x 22 inch)
Net Weight 13.2 kg
Side Panel Transparent Window
Color Exterior & Interior : Black
Material SPCC
Cooling System Front (intake) :
200 x 200 x 30 mm Blue LED fan (600~800rpm, 13~15dBA) x 2
Rear (exhaust) :
140 x 140 x 25 mm Turbo fan (1000rpm, 16dBA)
Top (exhaust) :
200 x 200 x 30 mm Blue LED fan (600~800rpm, 13~15dBA)
Drive Bays -Accessible : 2 x 5.25’’
-Hidden : 8 x 3.5’’ or 8 x 2.5’’
Expansion Slots 8
Motherboards 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (Extend ATX)
I/O Port USB 3.0 x 2,USB 2.0 x 2, HD Audio x 1
PSU Standard PS2 PSU (optional)
LCS Upgradable Supports 1/2”、3/8”、1/4” water tube
Fan Support Front:
1 x 120mm or 2 x 120mm or 3 x 120mm
1 x 140mm or 2 x 140mm
1 x 200mm or 2 x 200mm
Top:
1 x 120mm or 2 x 120mm or 3 x 120mm
1 x 140mm or 2 x 140mm
1 x 200mm or 2 x 200mm
Rear:
1 x 120mm or 1 x 140mm
Bottom:
1 x 120mm or 2 x 120mm
Radiator Support Front:
1 x 120mm or 1 x 240mm or 1 x 360mm
1 x 140mm or 1 x 280mm or 1 x 420mm
Top:
1 x 120mm or 1 x 240mm or 1 x 360mm
1 x 140mm or 1 x 280mm or 1 x 420mm
Rear:
1 x 120mm
Bottom:
1 x 120mm or 1 x 240mm
Other CPU cooler height limitation: 185mm
VGA length limitation: 310mm(with HDD rack)
400mm(without HDD rack)

For more information and pictures please visit the Thermaltake Core V71 Product Page.
