Thermaltake Urban T81 Full Tower Case Launched

Thermaltake's new Full Tower case, the Urban T81

Thermaltake Logo 300x225

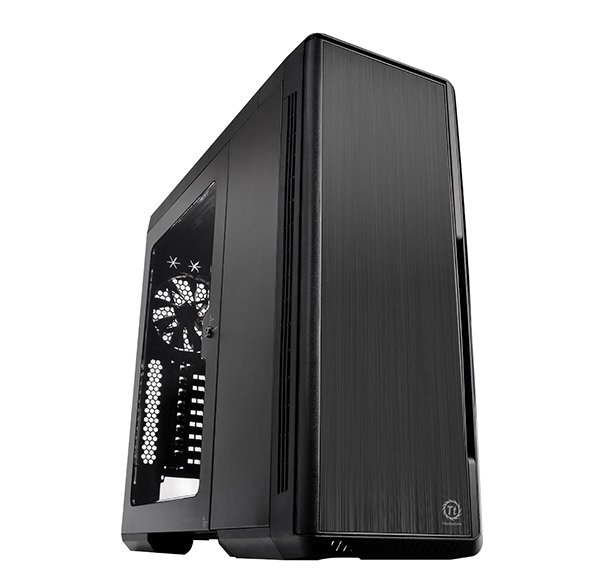

The Thermaltake Urban T81 full tower case is the latest in their Urban series of cases. Thermaltake claims this case is the great for the enthusiast PC builder. The Thermaltake Urban T81 has many features including dual swinging doors for easy access, fully modular drive bay design, brushed aluminum I/O port that includes USB 3.0, optimized air flow, and great custom liquid cooling support.

Thermaltake Urban T81 Full Tower Case

Thermaltake Urban T81 Full Tower Case

Thermaltake Urban T81 Features

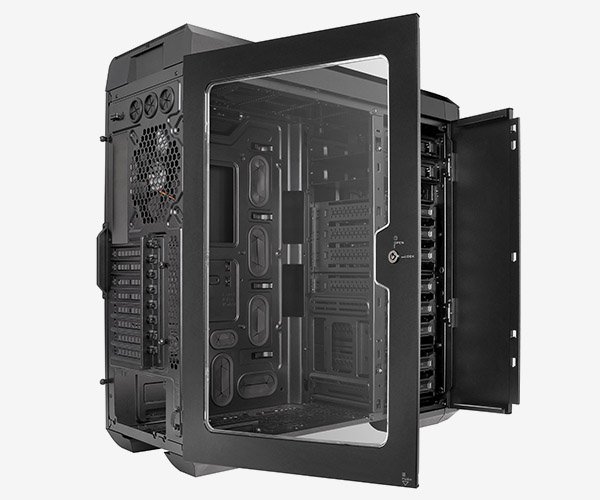

  • Dual Swing Door Design – Inspired by automotive “suicide doors” , the T81’s novel door panels are an innovative and inspired design that sets it apart from any other chassis . Likewise, the front door panel’s brushed aluminum finish masks extrusive drives and devices, producing a unified aesthetic of modern sophistication.
Thermaltake Urban T81 Full Tower Case

Thermaltake Urban T81 Full Tower Case

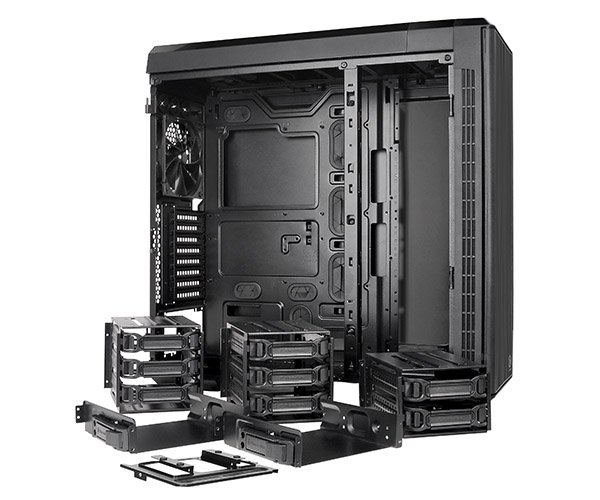

  • Fully Modular Concept – A highly customizable 5.25″ & 3.5″ drive bay enables users to freely interchange the 3.5″ hard-drive cages to suit one’s need, or remove 5.25″ & 3.5″ drive bays to gain maximum interior space for maximum airflow or the addition of liquid cooling systems.
Thermaltake Urban T81 Full Tower Case

Thermaltake Urban T81 Full Tower Case

  • Sleek I/O Port – The sleek, brushed aluminum I/O port section provides two of the latest SuperSpeed USB 3.0 ports, along with four USB 2.0 ports. The integrated fan hub and controller can easily manage the airflow of up to 10 fans at once. In addition, HD microphone and headset jacks are positioned for easy, direct access when needed.
Thermaltake Urban T81 Full Tower Case

Thermaltake Urban T81 Full Tower Case

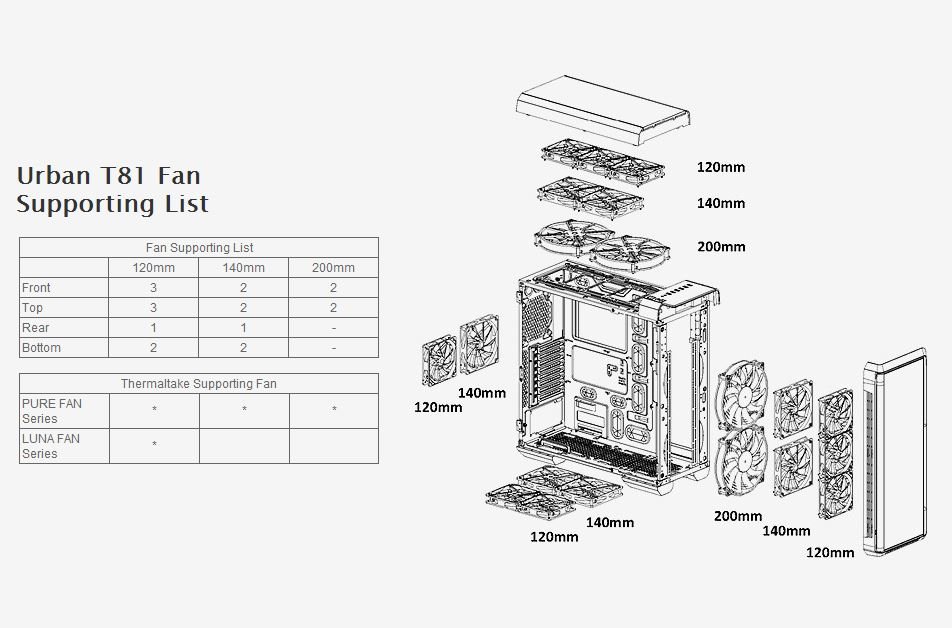

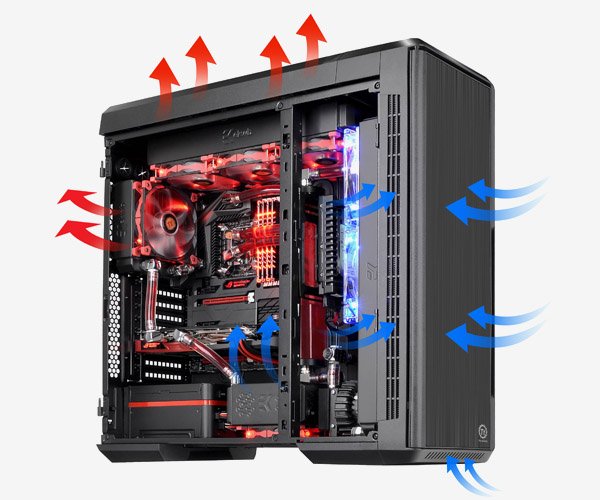

  • Supreme Air Cooling System – Urban T81 is built to optimize airflow as part of its fundamental design. Triple 200 mm fans and a 140 mm fan come equipped. It is the first chassis in the market that has the ability to house 4x 200 mm fans, along with three more 120 mm fans – allowing unrivaled airflow to protect your valuable components.
Thermaltake Urban T81 Full Tower Case

Thermaltake Urban T81 Full Tower Case

Thermaltake Urban T81 Full Tower Case

Thermaltake Urban T81 Full Tower Case

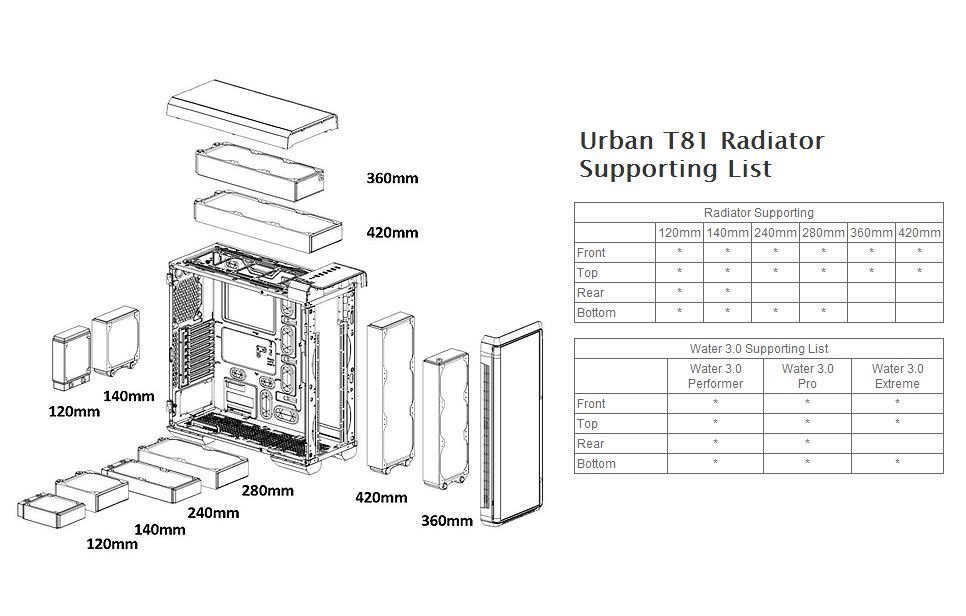

  • Extensive Liquid Cooling Support – Urban T81 pushes the envelope by utilizing a high-end water cooling solutions. Featuring support for either front 360 mm/top 420 mm or front 420 mm/top 360 mm radiators, along with rear 120 mm and bottom 120/240 mm radiators, the Urban T81 is an ideal chassis for extreme performance systems.
Thermaltake Urban T81 Full Tower Case

Thermaltake Urban T81 Full Tower Case

  • Extensive Liquid Cooling Support – Urban T81 pushes the envelope and utilize high-end water cooling solution that feature with either front 360/top 420 mm, or front 420 mm/top 360 mm, along with rear 120 mm and bottom 120/240 mm radiators support for extreme performance.



Thermaltake Urban T81 Full Tower Case

Thermaltake Urban T81 Full Tower Case



Thermaltake Urban T81 Full Tower Case Specifications

Case Type Full Tower
Dimension (H x W x D) 585 x 235 x 602 mm
Net Weight 13.8 Kg / 30.4 lb
Side Panel Transparent Window
Color Exterior & Interior : Black
Material SECC
Cooling System Front (intake) : 200 x 200 x 30 mm fan (600~800rpm, 13~15dBA) x 2 Rear (exhaust) : 140 x 140 x 25 mm Turbo fan (1000rpm, 16dBA) Top (exhaust) : 200 x 200 x 30 mm fan (600~800rpm, 13~15dBA)
Drive Bays Accessible : 2 x 5.25’’,1 x 3.5’’ (Converted from one 5.25” drive bay)
Expansion Bays 8
Motherboard Support 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (Extend ATX)
I/O Ports USB 3.0 x 2,USB 2.0 x 4, HD Audio x 1,
PSU Standard PS2 PSU (optional)
LCS Support Supports 1/2”、3/8”、1/4” water tube
Fan Support  Front: 1 x 120mm or 2 x 120mm or 3 x 120mm 1 x 140mm or 2 x 140mm 1 x 200mm or 2 x 200mm Top: 1 x 120mm or 2 x 120mm or 3 x 120mm 1 x 140mm or 2 x 140mm 1 x 200mm or 2 x 200mm Rear: 1 x 120mm or 1 x 140mm Bottom: 1 x 120mm or 2 x 120mm 1 x 140mm or 2 x 140mm
Other CPU cooler height limitation: 180mm
