Phanteks has released their new static pressure fan, the PH-F140SP, that are specifically designed for overcoming static pressure, blade deflection, and noise issues but without the PWM feature that the Phanteks PH-F140XP fan does have. The Phanteks PH-F140SP fan has 9 blades total that has Phanteks’ own maelstrom vortex booster (MVB) feature. The purpose of MVB is to create a downdraft vortex that decreases airflow turbulence on the blade surface which allows more airflow in general though the fans and helps keep the noise level down at the same time. In conjunction with the design of the blades the Phanteks PH-F140SP fan also features their own updraft floating balance (UFB) ball bearings. The design of the ball bearings is composed of MOSS and SSC systems with a hub-tip ratio for balance to help further reduce noise and vibration. The UFB ball bearings are also supposed to expand the lifespan of the PH-F140SP fan overall.
Phanteks PH-F140SP Static Pressure Fan
Phanteks PH-F140SP Fan Features
|
Brand
|
PHANTEKS
|
|
|
Type
|
Case and Radiator Fan
|
|
| Colors | Frame: Black; Blades: White; | |
| LED | N/A | 4 BLUE LEDs |
|
Bearing Type
|
UFB (Updraft Floating Balance) Bearing
|
|
|
Fan Dimensions
|
140 x 140 x 25mm
|
|
|
Blade Geometry
|
Nine Colored Blades with MVB(Maelström Vortex Booster) Design
|
|
|
Speed (RPM)
|
1200 ± 250 rpm
|
|
|
Max Airflow
|
82.1 CFM
|
|
|
Acoustical Noise
|
19 dB (A)
|
|
|
Static Pressure
|
1.33mm H2O
|
|
|
Input Current
|
0.14 A
|
|
|
Rate Voltage
|
DC 12V
|
|
|
Input Power
|
1.8 W
|
|
|
MTBF
|
>150,000 h
|
|
|
Speed Sensor
|
3 pins
|
|
|
Cable Length
|
500mm
|
|
|
LED ON/OFF Cable
|
N/A
|
500mm
|
|

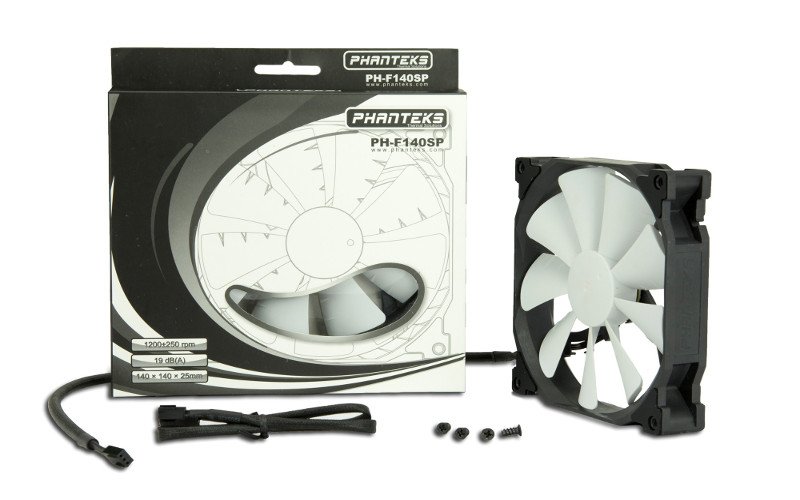

Scope of Delivery
|
1x 140mm Premium Fan
1x 400mm Extension Cable 4x Fan Screws |
1x 140mm Premium Fan 1x 400mm Extension Cable 1x LED switch adapter 4x Fan Screws |
|
Warranty
|
5 Years
|
|
-
