White overclocked Galaxy Geforce GTX 780 Hall of Fame Edition
Recently released, the Galaxy GTX 780 HOF Edition, brings two unique elements to the graphics card world. The first is the fact they have built this graphics card with a white PCB and an overall white theme. The second is the factory overclocking that has been given to the Galaxy GTX 780 HOF Edition. Galaxy claims this card is the fastest air cooled graphics card with a overclocked “stock” clock rate of 1006 Mhz and a boost clock rate of 1058 Mhz which is up from the normal 863 Mhz that Nvidia designed the card for. Currently the Galaxy GTX 780 HOF edition is selling for $689.99 from Amazon and Newegg.
Galaxy GTX 780 HOF Edition GPU
Galaxy GTX 780 HOF Edition Features and Specifications
Features:
- Turbo mode hardware overdrive for speeds beyond the limits of software tweaks
- World’s fastest air-cooled GTX 780 with 1058Mhz boost clock
- 1st GTX 780 with hybrid heat pipe + vapor chamber cooling
- Premium POSCAP and MLCC capacitors
- Winner of multiple overclock world records
- 8+2 phase digital power
- Voltage read points
- Custom white PCB
- NVIDIA® TXAA Technology
- NVIDIA GPU Boost 2.0
- NVIDIA PhysX® Technology
- NVIDIA FXAA Technology
- NVIDIA Adaptive Vertical Sync
- NVIDIA Surround
- Support for four concurrent displays including:Two dual-link DVI, HDMI and DisplayPort 1.2
- Microsoft DirectX 11.1 API （feature level 11_0）
- NVIDIA® 3D Vision® Ready
- NVIDIA SLI® Ready Technology
- NVIDIA CUDA® technology
- PCI Express 3.0 support
- OpenGL 4.3 support
- OpenCL support
- NVIDIA SHIELD Ready
Specifications:
| GPU Engine Specs: | |
| CUDA Cores | 2304 |
| Base Clock (MHz) | 1006 |
| Boost Clock (MHz) | 1058 |
| Texture Fill Rate (billion/sec) | 160.5 |
| Memory Specs: | |
| Memory Speed | 3004 (6008 effective) |
| Standard Memory Config | 3072MB |
| Memory Interface Width | 384-bit GDDR5 |
| Memory Bandwidth (GB/sec) | 288.4 |
| Feature Support: | |
| OpenGL | 4.3 |
| Bus Support | PCI-E 3.0 |
| Certified for Windows 8 | Yes |
| Supported Technologies | GPU Boost 2.0, 3D Vision, CUDA, DirectX 11, PhysX, TXAA, Adaptive VSync, FXAA, 3D Vision Surround, SLI-ready |
| SLI Options | 3-WAY |
| Display Support: | |
| Multi Monitor | 4 displays |
| Maximum Digital Resolution | 2560×1600 |
| Maximum VGA Resolution | 1920×1080 |
| HDCP | Yes |
| HDMI | Yes |
| Standard Display Connectors | Dual Link DVI x2, HDMI x1, DisplayPort 1.2 x1 |
| Audio Input for HDMI | Internal |
| Standard Graphics Card Dimensions: | |
| Length | 11.417inches |
| Height | 5.196inches |
| Width | 11.023inches |
| Power Specs: | |
| Maximum Graphics Card Power (W) | 250W |
| Minimum System Power Requirement (W) | 600W |
| Supplementary Power Connectors | Two 8-pin |

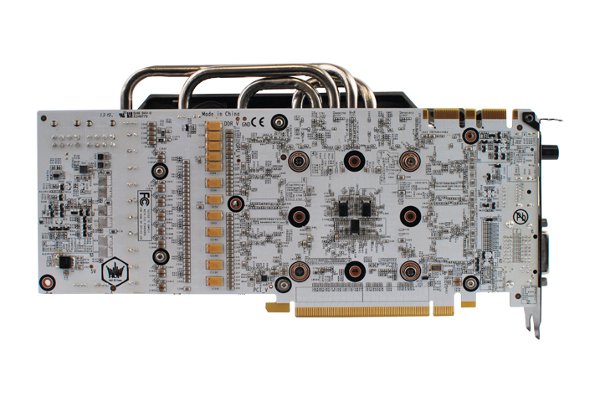

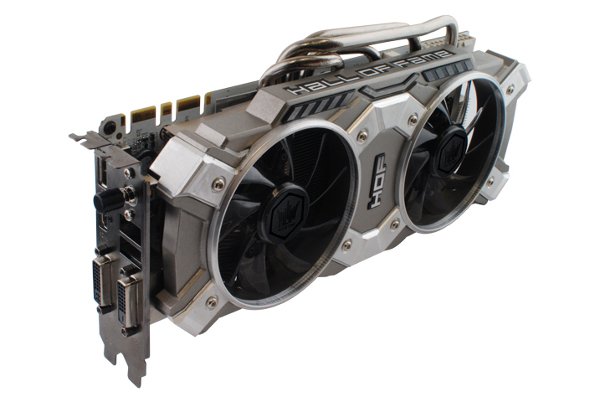

Galaxy GTX 780 HOF Edition GPU

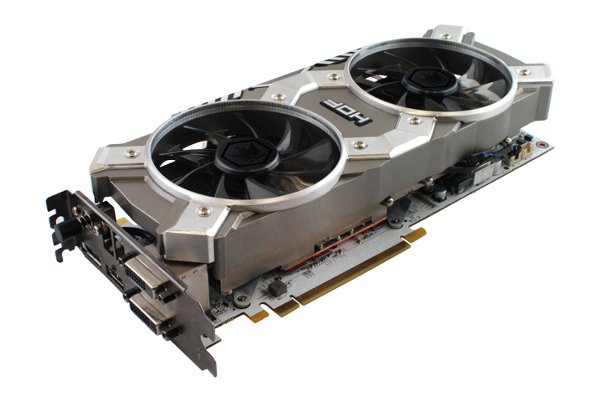

Galaxy GTX 780 HOF Edition GPU
