NZXT H630 is a Feature Packed Affordable Ultra Tower

Yesterday NZXT finally released their NZXT H630 ultra tower.  For days NZXT teased us by showing only snippets of what we could only guess was a new case from NZXT.  Yesterday they finally announced exactly what that case was and detailed what’s inside.  So let’s take a look at just what we’re dealing with.

NZXT H630



For starters, the outside of the case is has a sleek and boxy design.  The only deviation from the straight lines of this case, is the curve at the top left, the inputs on the right hand side, and the exhaust ports also located in the front.

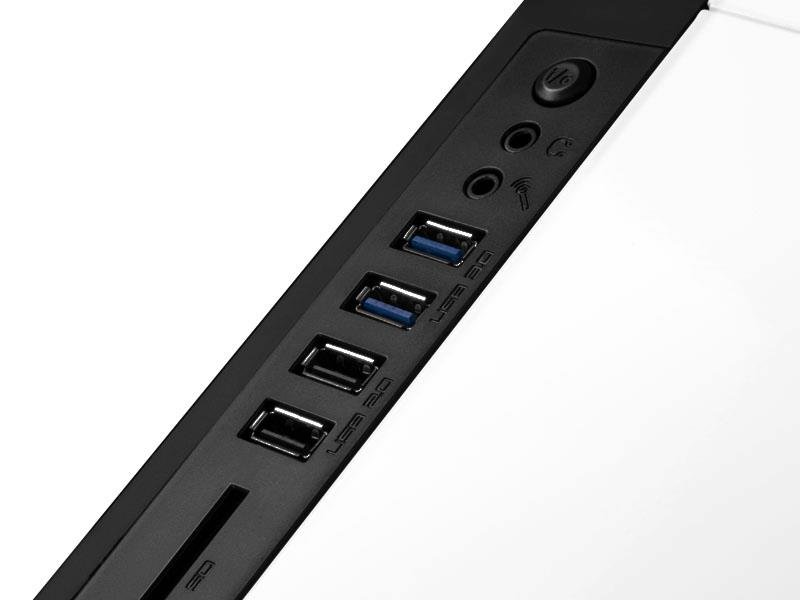

The front panel consist of 2x USB 3.0 ports, 2x USB 2.0 ports, a 3.5mm mic jack, a 3.5mm headphone jack, and an SD Card reader.

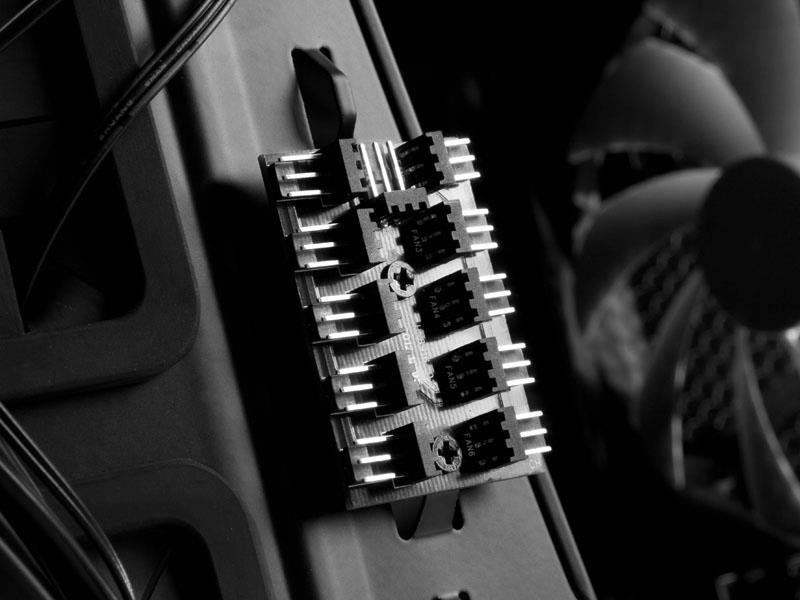

The NZXT H630 comes with a fan hub capable of supporting ten 3-pin molex powered fans.

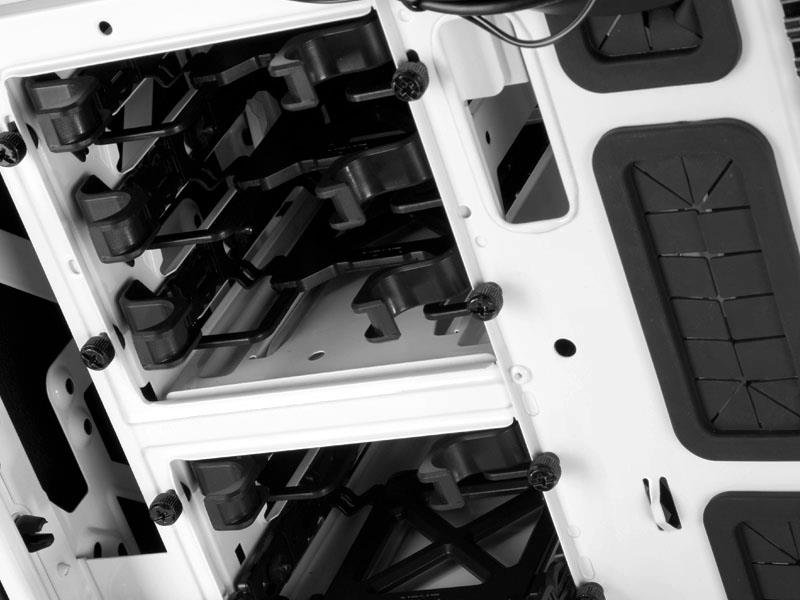

The NXZT H630 comes equipped with fully modular hard drive design.  Each modular bay is held in by thumbscrews which allows easy removal of each modular bay allowing you to place whichever component you’d like in that space.

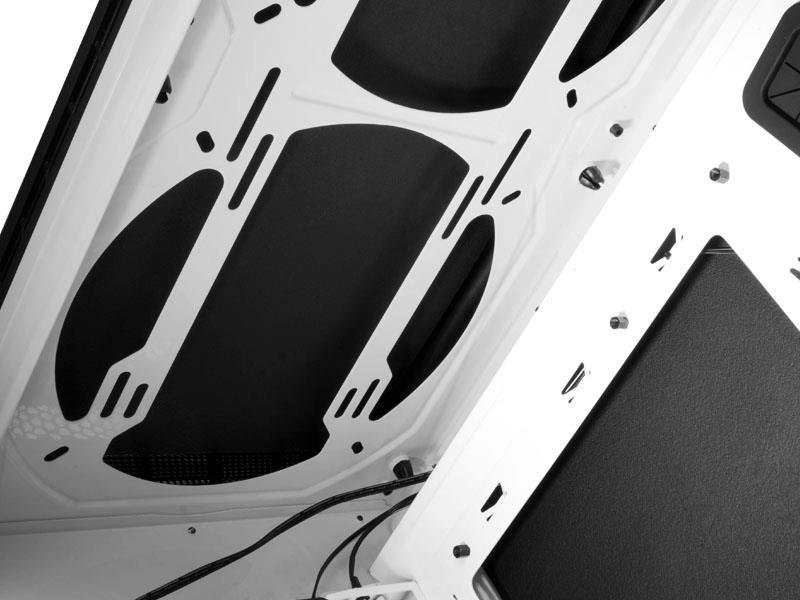

The NZXT H630 includes sound dampening material in order to keep this case as quiet as possible.

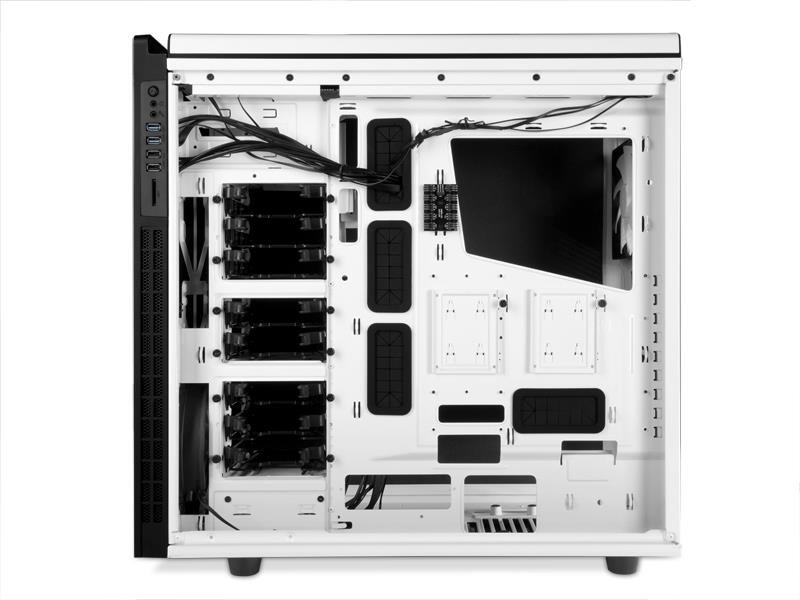

Pictured from the side we can get a full view of the entire case.  This case comes packaged with an incredible list of features.

Features and Specifications:

• Available Color Black / White
• Materials SECC Steel, ABS Plastic
• Dimension 245mm(W) x 547mm(H) x 567mm(D)
• Net Weight 14 kg
• M/B Type ATX, Micro-ATX, XL-ATX, EATX
• 5.25 Drive Bays 2 (tooless)
• 3.5 / 2.5 Drive Bays 8- 2×2.5″ behind MB, 2x3HDD Cage, 1x2HDD Cage (fully modular)
• 2.5 Drive Bays 1 (hidden)
• I/O Panel 1 x Audio/Mic 2 x USB 2.0, 2 x USB 3.0
  SD Card Reader With SDHC & SDXC Support I/O Panel LED On/Off
• Expansion Slots 9
• Cooling System Front 2 x 200 or 2 x 140 or 3 x 120mm ( 1 x 200mm included )
  Top 2 x 200 or 2 x 140 or 3 x 120mm
  Rear 1 x 140/120mm ( 1 x 140mm included )
  Bottom 2 x 140/120mm
  HDD Pivot 2 x 140/120mm
• Maximum Compatibility VGA card length: 320 mm / 12.6 inch
  CPU cooler height: 164mm / 6.4 inch
• Rad. Support Front 2 x 140 or 3 x 120mm
  Top 2 x 140 or 3 x 120mm
  Bottom 2 x 140/120
  Rear 1 x 140/120mm




MRSP: $149.99

Final Thoughts

Overall I’m incredibly impressed with the design, features, and cost of this cost.   You can get an enthusiast level case, packed full of modern features for under $150 with the NZXT H630.
