NZXT P530 – Meet the New NZXT Phantom 530

NZXT released their last promotional Computex 2013 product today, the NZXT P530.  The NZXT P530, or NZXT Phantom 530,  is the latest in the popular Phantom series cases that the hardware and modding community have come to love.  The Phantom 530 boost up to 70% more cable management space than the original Phantom, more airflow, and more liquid cooling support.

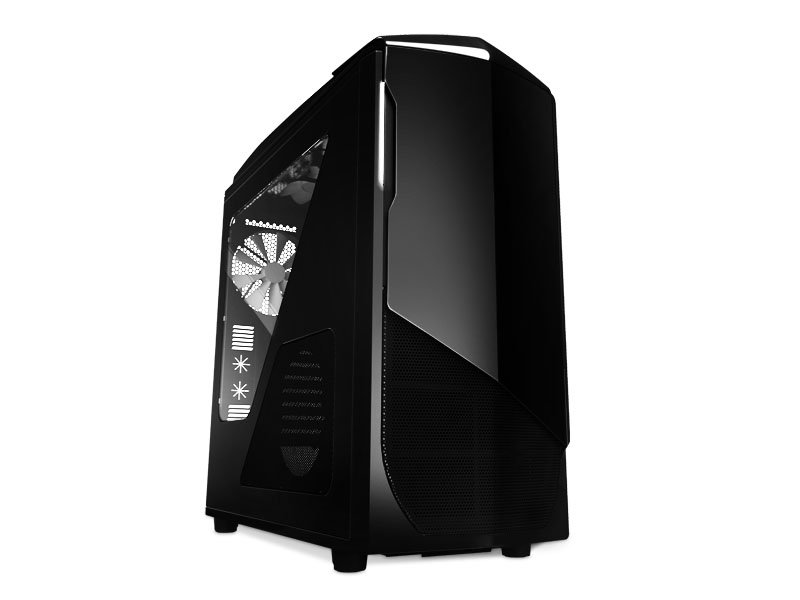

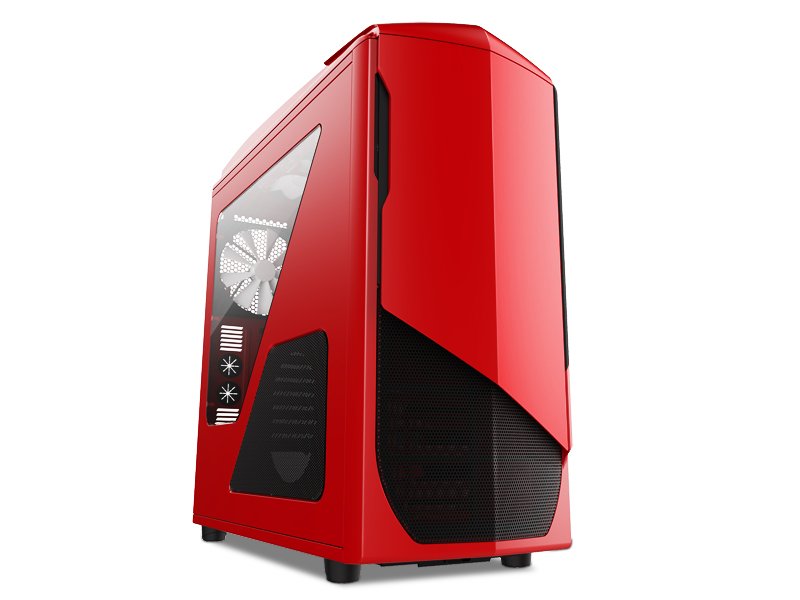

The NZXT P530 is available in black, red, or white.  Each case comes with the signature white fans, a 30W fan controller with an integrated hub, and an acrylic side window.  We can also see by the pictures, that behind the mesh type grill and on the bottom of the case, is removable filters to make cleaning an easier task.

NZXT Phantom 530 Overview





Features:

• Single channel, 30W fan controller with integrated fan hub
• Up to three 200mm fans for maximum airflow
• Discrete SSD mount behind motherboard tray
• 34mm of cable management clearance
• Fully modular, interchangeable hard drive cages
• Signature rear I/O LEDs + Latest USB 3.0 connection
• Large acrylic window
• Extensive liquid cooling support includes Kraken X40/X60 all-in-one solutions and radiators of up to 360mm in size
• Durable steel constructed 5.25” optical drive latches
• Eight motherboard expansion slots offer comprehensive expandability

Specs:

Size Full Tower Model Number CA-PH530-W1 White CA-PH530-B1 Black CA-PH530-R1 Red Drive Bays External 5.25″ x 3 Internal 3.5″ /2.5″: 6 Internal 2.5″: 1 + 6 Cooling System Front 2x140mm/ 120mm or 1x200mm (1 x 200mm included) Rear 1x140mm (included) / 120mm Bottom 2x120mm Side 1x140mm Top 2x200mm/ 140mm or 3x120mm Interior 1x120mm/140mm Clearance CPU Cooler 282mm (With Pivot Fan) VGA Card 310mm (With Cage)/ 444mm (Without Cage) Cable Management 26mm (Lowest Point)/ 34mm (Highest Point) Dimensions 235mm x 572mm x 543mm Material Steel, Plastic Motherboard Support ITX, Micro-ATX, ATX, EATX (322x272mm) Expansion Slots 8 External Electronics 1 x Audio / Mic 2 x USB 3.0 Product Weight 10.5 kg Warranty 2 Years



Are you excited about the new Phantom?  I know we are!  I can’t wait to see the mods on this one.
