Phanteks has been primarily a cooling company but this week they have launched the new Phanteks Primo full tower case which is part of their Enthoo series. According to the main page for the Phanteks Primo is this case will feature brushed aluminum front and top panels, liquid cooling ready, removable filters, dual PSU compatible, modular HDD cages, “drop-n-lock double stack SSD brackets, and Phanteks’ own reservoir bracket/cable cover.
Reading and looking at pictures the Phanteks Primo looks to be pretty solid. Good space inside with really good features especially if you are into custom loop water cooling. The inclusion of 5 Phanteks PH-F140SP fans make this case ready to go for putting in radiators. Lots of room for HDDs and SSDs. I know we are waiting to get on of these cases in for a review. Check out the specs and pictures below.
Phanteks Primo Full Tower Case – Enthoo Series
Phanteks Primo Full Tower Specifications
|
Dimension
|
250mm x 650mm x 600mm (WxHxD)
|
|
|
Form Factor
|
Full Tower Chassis
|
|
|
Material(s)
|
Aluminum Faceplates, Steel Chassis
|
|
|
Motherboard Support
|
ATX, EATX, mATX, SSI EEB
|
|
|
Front I/O
|
2x USB 3.0, 2x USB 2.0, Mic, Headphone, LED Switch, Reset Switch
|
|
|
Side Window
|
Yes, split-window design
|
|
| Expansion & Drive Bays | ||
|
Expansion slots
|
8
|
|
|
Power Supply Slots
|
2
|
|
|
External 5.25″
|
5
|
|
|
Internal 3.5″
|
6 (2x 3 HDD cages)
|
|
|
Internal 2.5″
|
12 (2x 3 HDD cages + 2x doublestack SSD brackets ) *expandable to 3x
|
|
|
Cooling
|
120mm fan
|
140mm fan |
|
Front
|
2x
|
2x (2x included with LED) |
|
Top
|
4x
|
3x (1x included) |
|
Side
|
2x
|
2x |
|
Rear
|
2x
|
1x (1x included) |
|
Bottom
|
4x
|
2x (1x included) |
|
HDD
|
2x
|
– |
|
Liquid Cooling
|
120mm radiator
|
140mm radiator |
|
Front
|
Up to 240
|
– |
|
Top
|
Up to 480
|
Up to 420 |
|
Side (w/o HDD cages)
|
Up to 240
|
– |
|
Rear
|
120
|
140 |
|
Bottom
|
Up to 480
|
Up to 280 |
|
Clearance
|
||
|
Graphic card
|
257mm (reservoir bracket installed)
|
|
|
277mm (reservoir bracket installed w/o cover)
|
||
|
350mm (no reservoir bracket)
|
||
|
390mm (HDD cages in front position)
|
||
|
515mm (no HDD cages)
|
||
|
CPU cooler
|
207mm
|
|
|
Cable management
|
30mm
|
|
|
PH-F140SP (included fans)
|
||
|
Speed (rpm)
|
1200±250 rpm
|
|
|
Max Airflow
|
82.1 CFM
|
|
|
Static Pressure
|
1.33mm H2O
|
|
|
Acoustical Noise
|
19 dB
|
|
|
Packaging Information
|
||
|
Package Dimension
|
320mm x 725mm x 705mm (WxHxD)
|
|
|
Net Weight
|
17.9 kg
|
|
|
Gross Weight
|
20 kg
|
|
|
Warranty
|
||
|
Length
|
5 Years Limited
|
|
-

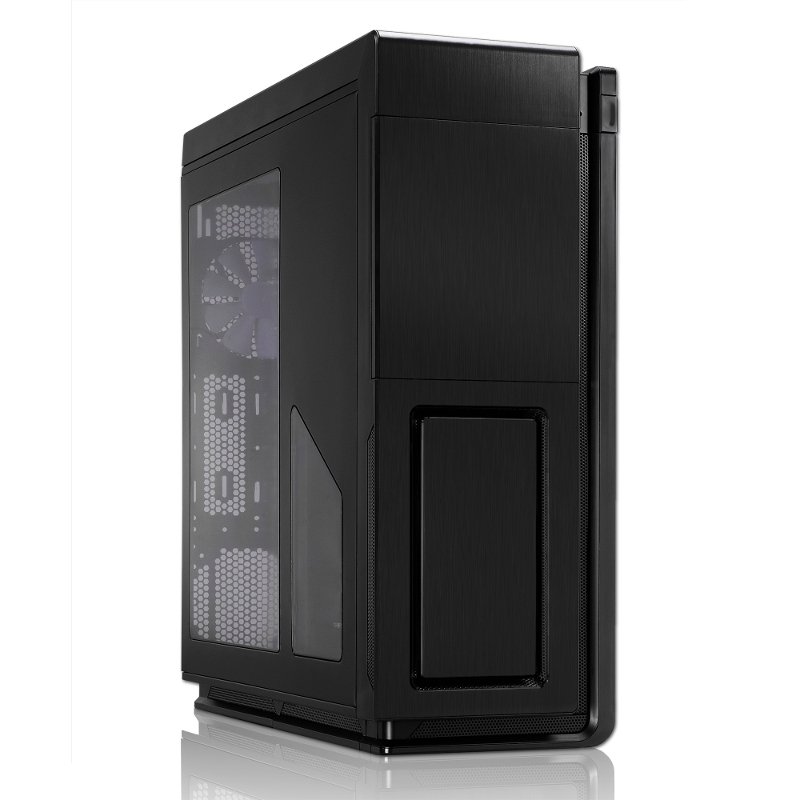

- Phanteks Primo Full Tower Case – Outside
-
- Phanteks Primo Full Tower Case – Inside
-
- Phanteks Primo Full Tower Case – Inside
-
- Phanteks Primo Full Tower Case – Inside
-
- Phanteks Primo Full Tower Case – Liquid Cooling
-
- Phanteks Primo Full Tower Case – Liquid Cooling
-
- Phanteks Primo Full Tower Case – Liquid Cooling
-
- Phanteks Primo Full Tower Case – Top
-
- Phanteks Primo Full Tower Case – Filter
-
- Phanteks Primo Full Tower Case – Front
