Bitfenix Prodigy M – mATX Case Shown at Computex

Bitfenix Prodigy M

Bitfenix Prodigy M – mATX Case Shown at Computex

During Computex 2013 Bitfenix showed off their Biftenix Prodigy M, or as I like to call it, the Bitfenix Prodigy mATX.  It just sounds more correct.  Either way, this case looks and feels much like the Bitfenix Prodigy, however there are a few perks to this new version that might get you Prodigy lovers a little excited.

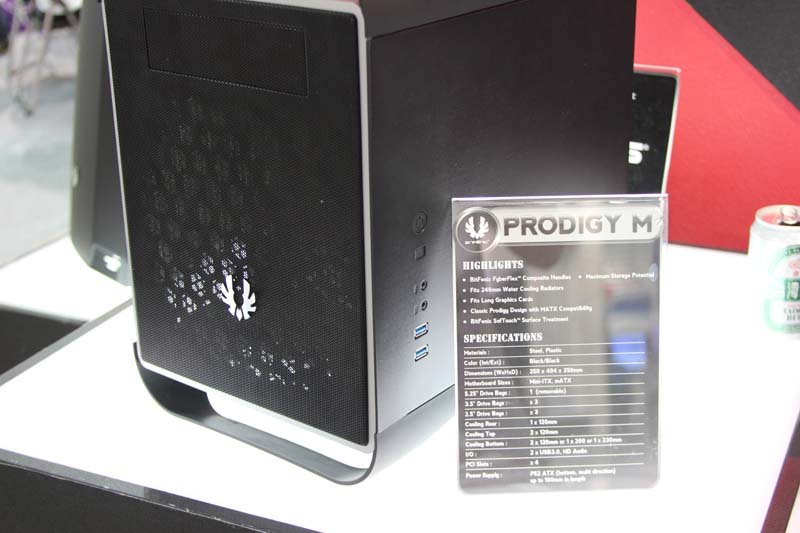

Bitfenix Prodigy M Specs

Bitfenix Prodigy M

Materials Steel, Plastic
Color (Interior/Exterior) Black/Black
Dimensions (WxHxD) 250 x 404 x 359
Motherboard Types Mini-ITX, mATX
5.25″ Drive Bays 1 (Removable)
3.5″ Drive Bays 3
3.5″ Drive Bays 3
Cooling Rear 1 x 120mm
Cooling Top 3 x 120mm
Cooling Bottom 3 x 120mm or 1 x 200 or 1 x 230mm
I/O 3x USB 3.0, HD Audio
PCI Slots x4
Power Supply  PS2 ATX (bottom, multidirectional)up to 160mm in length
Water Cooling Support Fits 240MM Radiator

Bitfenix Prodigy mATX

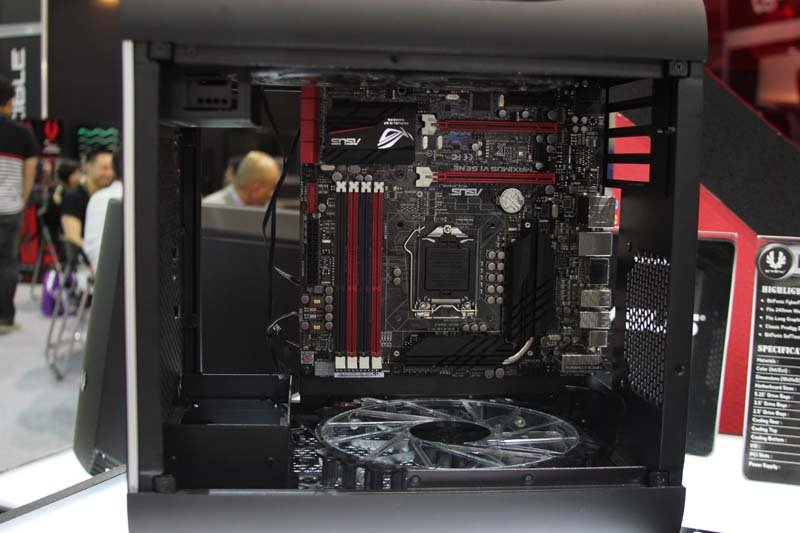

The Bitfenix Prodigy M expanded the amount of room on the back side of the motherboard, giving you a little extra room for cable routing.

Bitfenix Prodigy MIMG_7710

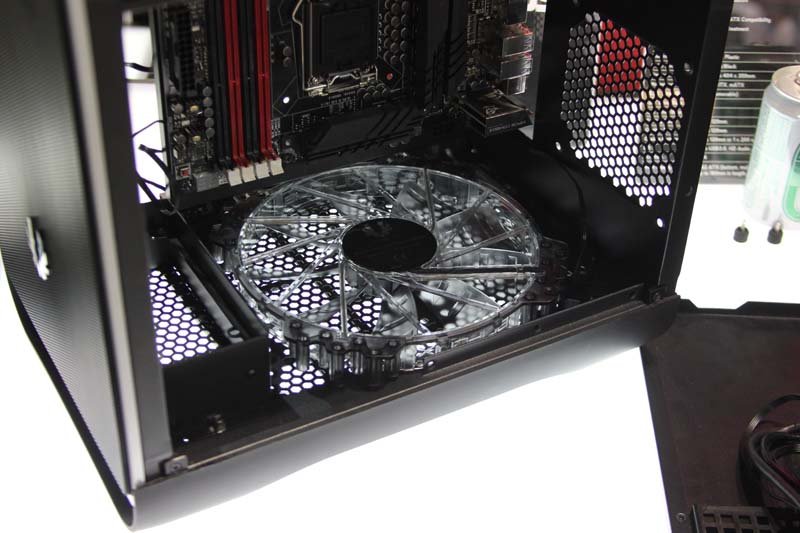

The bottom fan can be changed out with 3x120MM fans, 1x 200MM fan, or 1x 230MM fan.

Bitfenix Prodigy M

Bitfenix Prodigy M

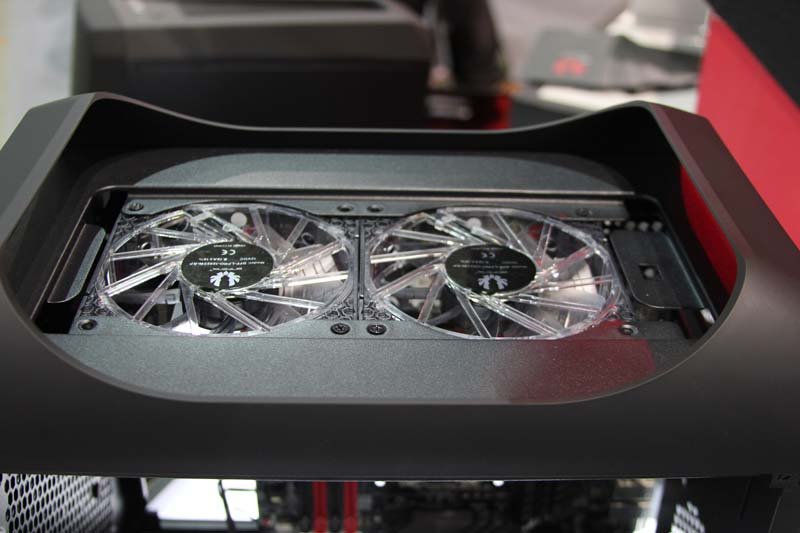

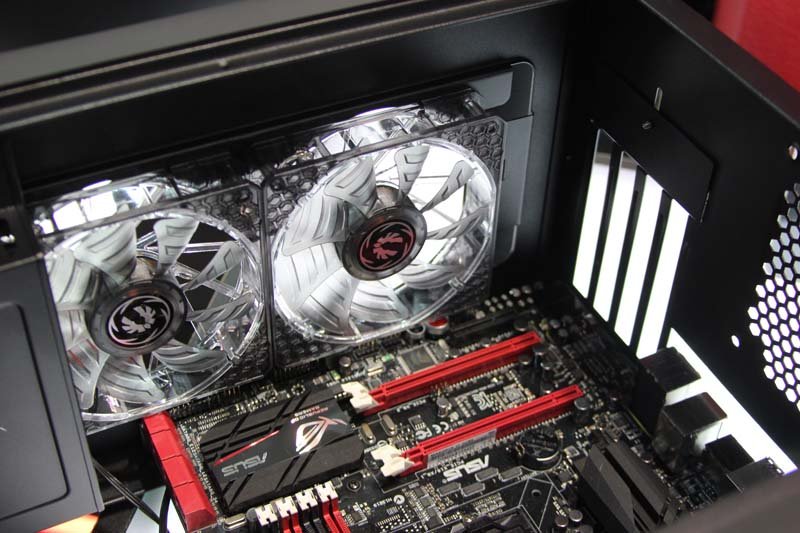

The Bitfenix Prodigy M supports a 240MM radiator between the top carrying handles.



Bitfenix Prodigy M mATX Case Overview

Overall, I feel the Prodigy M is a large success.  They’ve expanded your options from mini ITX to mATX, while also retaining 240mm radiator support, and even giving you some extra room for cable routing behind the motherboard.  According to the specifications at Computex 2013, the Prodigy M supports “long graphics cards”.  I’m not overly sure what their definition of “long” is, but i’d assume it could handle something 11″ inches long, like the GTX 690 since the dimensions of the Prodigy have remained unchanged.

There are some “bigger” changes.  For instance the PSU has been moved to the front, something we’ve seen quite a lot of lately.  They’ve also added 2 more PCI slots on the Prodigy M, bringing you a total of 4 slots on this one.  Other than that though, there really isn’t much more that’s changed.

Overall, I think this is a good example of making a good thing better.  The case has virtually remained unchanged, with the exception of a few improvements.
